AFIDA - Advanced Fuel Ignition Delay Analyser.
AFIDA is a revolutionary development providing
fully automated determination of the Indicated
Cetane Number (ICN) of diesel and diesel related
fuels using test method IP 617.
OnlineH2S includes a microcontroller-unit for a quantitative
determination of the released H2S from the sewer with sensor
technology at two or more selected measurement points
ATIPL is promoted by a group of experienced technocrats having more than 30 years experience in marketing, servicing & providing technical support in the field of analytical, process control and test and measuring instrumentation products used in the field of petro chemicals, cryogenics & biotechnology.
Our core expertise is in the field of Laboratory and on-line Testing equipment and quality control instruments used to measure the characteristics of Petroleum products its derivatives.
The Seta D2 Handheld Conductivity Sensor (D2 JF-1A-HH model) meets the requirements of ASTM D2624. It provides an accurate and rapid conductivity measurement of distillate fuels;
The analyser can measure fuel electrical conductivities between 0 and 2000 picosiemens/meter (pS/M), although it is optimised and normally used in the 0 to 500 pS/M range. The conductivity analyser is constructed of thermally stable internal electronics and two 316 SS coaxial electrode sensors.
AFIDA is a revolutionary development providing fully automated determination of the Indicated Cetane Number (ICN) of diesel and diesel related fuels using test method IP 617.
An ultra robust temperature controlled piezo electric injector provides rapid switching and highly repeatable fuel metering, offering improved performance and consistency when compared with solenoid controlled injectors and pintle type nozzles. The analyser provides very fast, efficient and calibrated Indicated Cetane Number determinations.
IP 583 | ASTM D7797 - Determination of the fatty acid methyl esters (FAME) content of aviation turbine fuel (AVTUR) with fourier transform infrared spectroscopy (FTIR) – Rapid screening method
FIJI can be used as a field or lab based screening tool to give a quick indication of possible FAME contamination that may then necessitate further investigations. The instrument can be used to prevent expensive testing and avoid costly delays of fuel release.

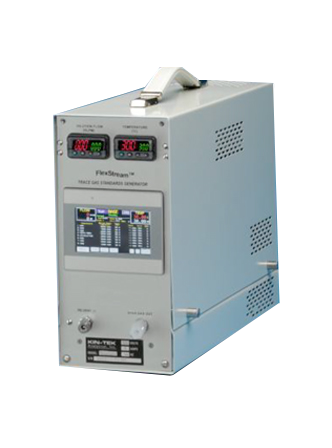

The new FlexStream™ automated Perm Tube System offers total flexibility for creating precision gas mixtures. Mixtures are produced by diluting the miniscule flow emitted from Trace Source.
The new FlexStream™ Automated Permeation Tube System offers total flexibility for generating precision gases and gas mixtures.
The determination of total volatile sulphides in aqueous solutions and oils works through high efficient gas extraction linked with a selective detection method.
The H2S-Analyzer fulfils the requirements of the standard DIN 38405-27:2017-10: Determination of sulphide by gas extraction method (D 27)The H2S-Analyzer creates the opportunity for analysis of hydrogen sulphide in gases and liquids in only one device.
The Acid Number Titrator is designed for the determination of free fatty acids in oils and fats. Its operating mode complies with IEC 62021-1:2003 and ASTM D664-95 standards for mineral oils.
The acid number (or "neutralization number") is used as an expression for the freshness of fats, e. g. in the food industry. For the measurement of free fatty acids, a volumetric titration method with potassium hydroxide is used.
An inline system that provides real time measurement of conductivity in pipelines using high accuracy AC measurement technology according to ASTM D2624.
The system can be connected to a refinery/terminal management system to provide an automatic and continuous record of product conductivity levels, eliminating the requirement for manual sampling and record keeping.
The OnlineNH3 is used for a quantitative determination of NH3 in livestock buildings, digestion towers and biogas plants. The sampling can be carried out at one, two or more selected measuring points.
The measurement of NH3 works with selective, electrochemical sensors. The mobile microcontroller unit includes a data acquisition and data transmission tool.
OnlineH2S includes a microcontroller-unit for a quantitative determination of the released H2S from the sewer with sensor technology at two or more selected measurement points.
Data can be downloaded by a secured internet transfer line at any time. The control-algorithm includes an intelligent self-learning system of settings, which reacts immediately to local circumstances of the sewage-volume and H2S-carriage.
