PENETROMETER

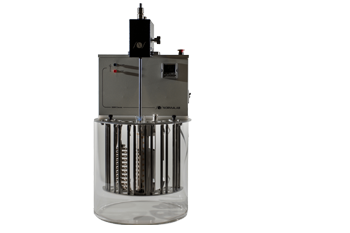

Automatic penetrometer, the NPN Tech is a compact unit. The device is able to measure automatically the penetration value of the sample. With an auto-electronic detection of depth penetration (optional accessories), the NPN Tech is used for consistency and resistance determination of pasty, creamy, semi-solid or highly viscous samples.





TECHNICAL DATA
Power supply AC 230 V, 50/60Hz – 1 A
Dimensions 720 (W) x 250 (D) x (H) 330 mm
Weight 16 kg

CHARACTERISTICS


  • Stepper motor for penetration depth as low as 0.01 mm
  • Programmable Penetration time between 0 and 999 min
  • Range : 0 to 75 mm (result in 1/10mm)
