NPM Tech Normes : ASTM D 93, IP 34, ISO 2719
DESCRIPTION

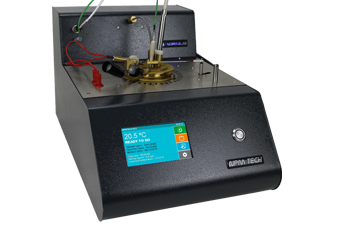

NORMALAB Flash Point Range is a unique Combination of selected Technologies and features at the price level of an half automated Instrument. Operator’s intervention is reduced to the minimum while the software, electronic components available and design offer Safety and traceability of the results.
With Predefined temperature ramps, ignitor presentation by push button, automatic Flash Point detection by thermocouple and Barometric correction, the units guarantee repeatability and reproducibility at a much higher level than standard semi-auto units. In addition, the Colour Touchscreen, integrated quick cooling system and optional printer make it very efficient and easy to use.
| CHARACTERISTICS | |
|---|---|
| Temperature range from ambiant to 400°C | |
| Temperature display in °C or °F | |
| 4.3″ resistive color touchscreen | |
| Class B Pt 100 probe | |
| 4 predefined methods (A/ A+/ B/ C) | |
| 1 research mode and 1 safety mode | |
| Fast cooling system by fan | |
| Automatic presentation by push button | |
| Automatic detection by thermocouple (no calibration required) | |
| Electric ignitor, adjustable from 0 to 30 W (no gas) | |
| Barometric correction with temperature compensation | |
| Adjustable and settable strirring speed from 0 to 250 Rpm | |
| Preheating sample with/without stirring | |
| Predefined temperature range depending on the method | |
| TECHNICAL DATA | |
|---|---|
| Power supply | 30 V (+/- 10%), 50/60 Hz – 5 A |
| Dimension | (W) 280 x (D) 440 x (H) 250 mm |
| Weight | 10,5 kg |
