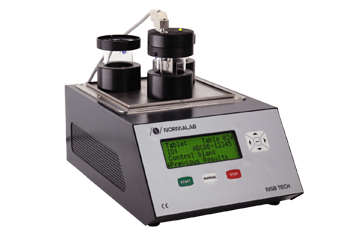

SALTS IN CRUDE OIL (ELECTRONIC METHOD)

NSB TECH Normes : ASTM D 3230, IP 265

DESCRIPTION

Fully automatic, the NSB TECH offers a precise test of salt concentration in crude oil. This test measures conductivity in the crude oil due to the presence of common chlorides, such as sodium, calcium, and magnesium by electronical methods. Knowledge of the chloride concentration gives information on the efficiency of the desalination process and provides a solid basis for assessing the need for crude oil desalting. The corrosion rates in refining units depend on the chloride concentration.



CHARACTERISTICS
Fully automatic model
Fully complies with commercial and customs applications
Preset calibration at three differents temperatures (20°C, 26°C & 32°C for ASTM method)
Auto-selection of ASTM and IP tables
Hight current resolution (0,01 mA)

FEATURES


  • The NSB TECH is fully automatic. Easy to use, the test is done alone with 5 preset voltages. The correlation is established through 3 pre calculated record tables. The table is selected depending on the sample temperature. This unit offers a digital readout of both current and voltage for easy checking. The device gives the best results recorded. The data is printed or exported to USB memory stick. Customizable, it is easy to set up the test data or create a custom table. The 50 last tests are archived.
  • To maximize user safety, a Hall effect sensor checks contact between the cover and the tank. A green indicator light warns of good positioning and a red light indicates when the unit is on. An audible alarm warns during the test of the 5 measurements.


TECHNICAL DATA
Power supply AC 230V or AC115 V – 50/60 Hz – 1A
Dimensions 250 x 370 x 200 mm
Weight 6kg

SECURITY


  • Safety cover
  • Safety over current
  • Light indicator
